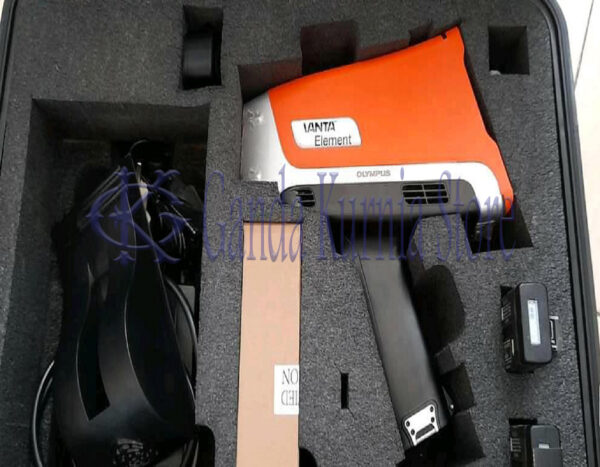

Olympus Vanta Element Handheld XRF Analyzer

$14.400

Model : Vanta Element

Category: NDT Inspection Tag: XRF Analyzer

Spread the love

Description

Olympus Vanta Element Handheld XRF Analyzer

Name: Olympus Vanta Element Handheld XRF Analyzer
Brand: Olympus
SKU: 401
Price: 14400 USD
Availability: InStock
Rating: 5 (2 reviews)

Olympus Vanta Element XRF analyzer series provides elemental analysis for fast alloy grade identification and sorting at an affordable price. The series is available in two cost-effective models:

Vanta Element analyzer for affordable alloy ID
Vanta Element-S analyzer for affordable alloy ID, including light element detection for magnesium (Mg), aluminum (Al), silicon (Si), sulfur (S), and phosphorus (P)

Both models feature fast grade ID and clear on-screen grade comparison to speed up metal testing for scrap sorting, metal manufacturing, and precious metals analysis.

The smartphone-like user interface is easy to use and easy to learn, helping to streamline both user training and the sorting process.

Specifications Olympus Vanta Element

	VANTA ELEMENT MODEL	VANTA ELEMENT-S MODEL
DIMENSIONS (W X H X D)	8.3 x 28.9 x 24.2 cm (3.25 x 11.4 x 9.5 in.)
WEIGHT	1.54 kg (3.39 lb) with battery, 1.32 kg (2.91 lb) without battery
EXCITATION SOURCE	2-watt X-ray tube with 35 kV tungsten anode	4-watt X-ray tube with 50kV silver (Ag) anode
PRIMARY BEAM FILTRATION	Fixed aluminum filter
DETECTOR	Silicon PIN detector	Silicon drift detector (SDD)
POWER	Removable 14.4 V Li-Ion battery or 18 V power transformer 100–240 VAC, 50–60 Hz, 70 W max
DISPLAY	800 × 480 (WVGA) LCD with capacitive touch screen supporting gesture control
OPERATING ENVIRONMENT	Temperature: −10 °C to 45 °C (14 °F to 113 °F) at 100% duty cycleHumidity: 10% to 90% relative humidity noncondensing
DROP TEST	Military Standard 810-G 4-foot (1.3 M) drop test
IP RATING AND DETECTOR SHUTTER	IP54: dust protected and protected against water splashing from all directions
OPERATING SYSTEM	Linux^®
DATA STORAGE	microSD™ slot with removable 1 GB Industrial SD card included
USB	Two USB 2.0 type A host ports for accessories such as wireless LAN, Bluetooth®, and USB flash drives.One USB 2.0 type mini-B port for connection to computer.
WIRELESS LAN	Supports 802.11 b/g/n (2.4 GHz) via optional USB adaptor
BLUETOOTH	Supports Bluetooth^® with an optional USB adaptor
WARRANTY	One-year warranty
OPTIONAL ACCESSORIES	Field Stand, Soil Foot, and Holster
