Olympus Vanta Element-S Series Handheld XRF Analyzer
$15.000
Model : Vanta Element-S
Description
Olympus Vanta Element-S Series Handheld XRF Analyzer Series
Olympus Vanta Element-S XRF analyzer series provides elemental analysis for fast alloy grade identification and sorting at an affordable price. The series is available in two cost-effective models:
- Vanta Element analyzer for affordable alloy ID
- Vanta Element-S analyzer for affordable alloy ID, including light element detection for magnesium (Mg), aluminum (Al), silicon (Si), sulfur (S), and phosphorus (P)
Both models feature fast grade ID and clear on-screen grade comparison to speed up metal testing for scrap sorting, metal manufacturing, and precious metals analysis.

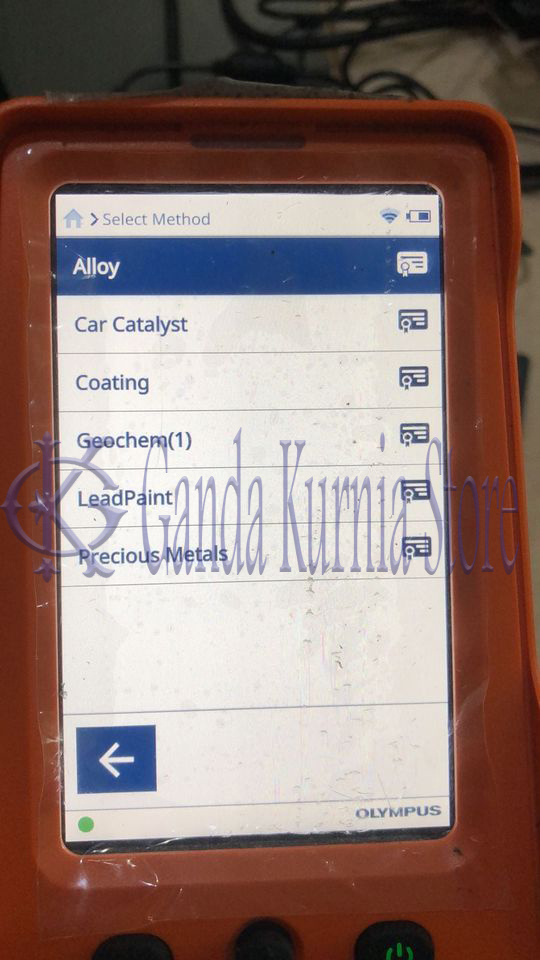

The smartphone-like user interface is easy to use and easy to learn, helping to streamline both user training and the sorting process.
Specifications Olympus Vanta Element-S
| VANTA ELEMENT MODEL | VANTA ELEMENT-S MODEL | |
|---|---|---|
| DIMENSIONS (W X H X D) | 8.3 x 28.9 x 24.2 cm (3.25 x 11.4 x 9.5 in.) | |
| WEIGHT | 1.54 kg (3.39 lb) with battery, 1.32 kg (2.91 lb) without battery | |
| EXCITATION SOURCE | 2-watt X-ray tube with 35 kV tungsten anode | 4-watt X-ray tube with 50kV silver (Ag) anode |
| PRIMARY BEAM FILTRATION | Fixed aluminum filter | |
| DETECTOR | Silicon PIN detector | Silicon drift detector (SDD) |
| POWER | Removable 14.4 V Li-Ion battery or 18 V power transformer 100–240 VAC, 50–60 Hz, 70 W max | |
| DISPLAY | 800 × 480 (WVGA) LCD with capacitive touch screen supporting gesture control | |
| OPERATING ENVIRONMENT | Temperature: −10 °C to 45 °C (14 °F to 113 °F) at 100% duty cycle
Humidity: 10% to 90% relative humidity noncondensing |
|
| DROP TEST | Military Standard 810-G 4-foot (1.3 M) drop test | |
| IP RATING AND DETECTOR SHUTTER | IP54: dust protected and protected against water splashing from all directions | |
| OPERATING SYSTEM | Linux® | |
| DATA STORAGE | microSD™ slot with removable 1 GB Industrial SD card included | |
| USB | Two USB 2.0 type A host ports for accessories such as wireless LAN, Bluetooth®, and USB flash drives.
One USB 2.0 type mini-B port for connection to computer. |
|
| WIRELESS LAN | Supports 802.11 b/g/n (2.4 GHz) via optional USB adaptor | |
| BLUETOOTH | Supports Bluetooth® with an optional USB adaptor | |
| WARRANTY | One-year warranty | |
| OPTIONAL ACCESSORIES | Field Stand, Soil Foot, and Holster | |
Additional information
| Lead Time | 3-5 Days |
|---|---|
| Packaging | Box |
Brand
Olympus
