Description

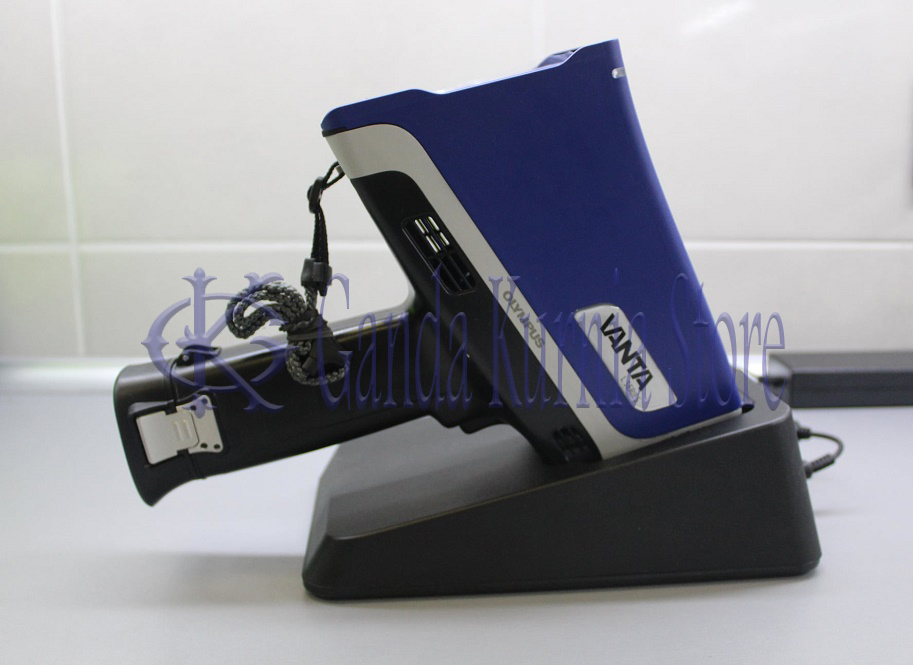

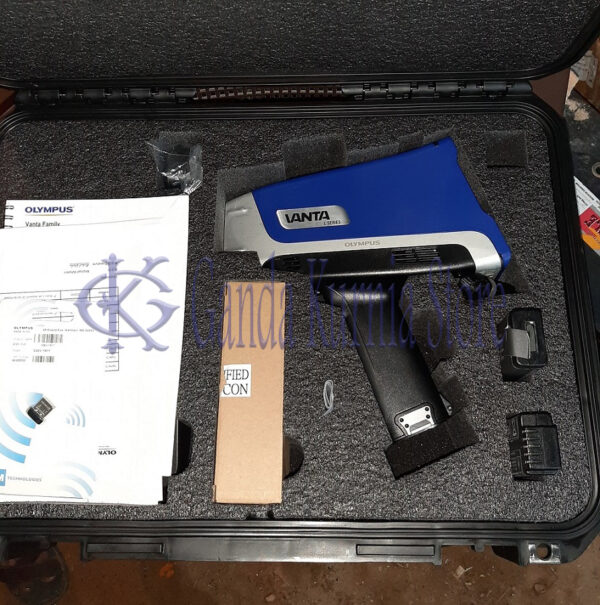

Olympus Vanta L Series XRF Analyzer
The Vanta Handheld XRF Series:
Fast. Accurate. Easy to Use.
The Olympus Vanta L Series analyzer is our most advanced handheld X-ray fluorescence (XRF) device for customers who demand laboratory-quality results in the field. It provides rapid, accurate elemental analysis and alloy identification for high-throughput XRF testing.
Olympus Vanta L Series handheld XRF analyzers are built to be tough. Their rugged, durable design makes them resistant to damage in challenging industrial environments for greater uptime and a lower cost of ownership.
With an intuitive user interface and customizable software, the Vanta XRF series is easy to use with minimal training for high throughput and a fast return on investment. Featuring innovative and proprietary Axon Technology™, Vanta analyzers give you accurate results and help boost productivity no matter the environment or working conditions.
- Exceptionally durable under extreme conditions.
- Superior analytics.
- Optional wireless LAN and Bluetooth® for real-time data sharing. Cloud technology enabled.
- Intuitive user interface.
Olympus Vanta L Series Specification :
| DIMENSIONS (W X H X D) | 8.3 cm × 28.9 cm × 24.2 cm (3.25 in. × 11.4 in. × 9.5 in.) |
| WEIGHT | M series, C series, and Vanta L series: 1.70 kg (3.75 lb) with battery, 1.48 kg (3.24 lb) without battery Element: 1.54 kg (3.39 lb) with battery, 1.32 kg (2.91 lb) without battery |
| EXCITATION SOURCE | 4-watt X-ray tube with application-optimized anode material (rhodium (Rh), silver (Ag), or tungsten (W)) M series (Rh W) and C series (Ag): 8–50 kV C series (Rh W): 8–40 kV L series (W) and Element (W): 35 kV (2 watts) |
| PRIMARY BEAM FILTRATION | M and C series: 8-position autoselected filter per beam per mode; optional collimation to 3 mm diameter beam spot Vanta L series and Element: Fixed aluminum filter and no internal collimation |
| DETECTOR | M series: Large-area silicon drift detector C series: Silicon drift detector L series and Element: Silicon PIN detector |
| POWER | Removable 14.4 V Li-ion battery with hot-swap capability (M, C, and L series only) or 18 V power transformer 100–240 VAC, 50–60 Hz, 70 W max |
| DISPLAY | 800 × 480 (WVGA) LCD with capacitive touch screen supporting gesture control |
| OPERATING ENVIRONMENT | Temperature range for the M, C, and L series: −10 °C to 50 °C (14 °F to 122 °F), (continuous duty cycle with optional fan); Temperature range for the Element: −10 °C to 45 °C (14 °F to 113 °F) Humidity: 10% to 90% relative humidity non-condensing |
| DROP TEST | Military Standard 810-G 4-foot (1.3 M) drop test |
| IP RATING AND DETECTOR SHUTTER | M series, and Element IP54: dust protected and protected against water splashing from all directions C and L series IP55: dust protected and protected against water jets from all directions M and C series: Solid detector shutter to help prevent detector damage |
| PRESSURE CORRECTION | M and C series: Built-in barometer for automatic altitude and air density correction |
| GPS | M, C, and L series: Embedded GPS / GLONASS receiver |
| OPERATING SYSTEM | Linux® Cloud enabled with user fleet manager capability |
| DATA STORAGE | microSD™ slot with removable 1 GB industrial SD card included |
| USB | (2) USB 2.0 type A host ports for accessories such as wireless LAN, Bluetooth®, and USB flash drives. (1) USB 2.0 type mini-B port for connection to computer. |
| WIRELESS LAN | Supports 802.11 b/g/n (2.4 GHz) cable optional USB adaptor |
| BLUETOOTH | Supports Bluetooth® with an optional USB adaptor |
| AIMING CAMERA | Full VGA CMOS camera (Optional) |
| PANORAMA CAMERA | 5-megapixel CMOS camera with autofocus lens (Optional on M, C, and L series) |
| WARRANTY | M, C, and L series: Three-year warranty; Element: One-year warranty |
| SELECTED OPTIONAL ACCESSORIES | M, C, and L series: Field Stand, Soil Foot, Holster, Work Station, Weld Mask, Hot Heel, Probe Shield, and VLW Collimation Mask (L series only) Element: Field Stand, Soil Foot, and Holster |
Additional information
| Lead Time | 3-5 Days |
|---|---|
| Packaging | Box |
