Description

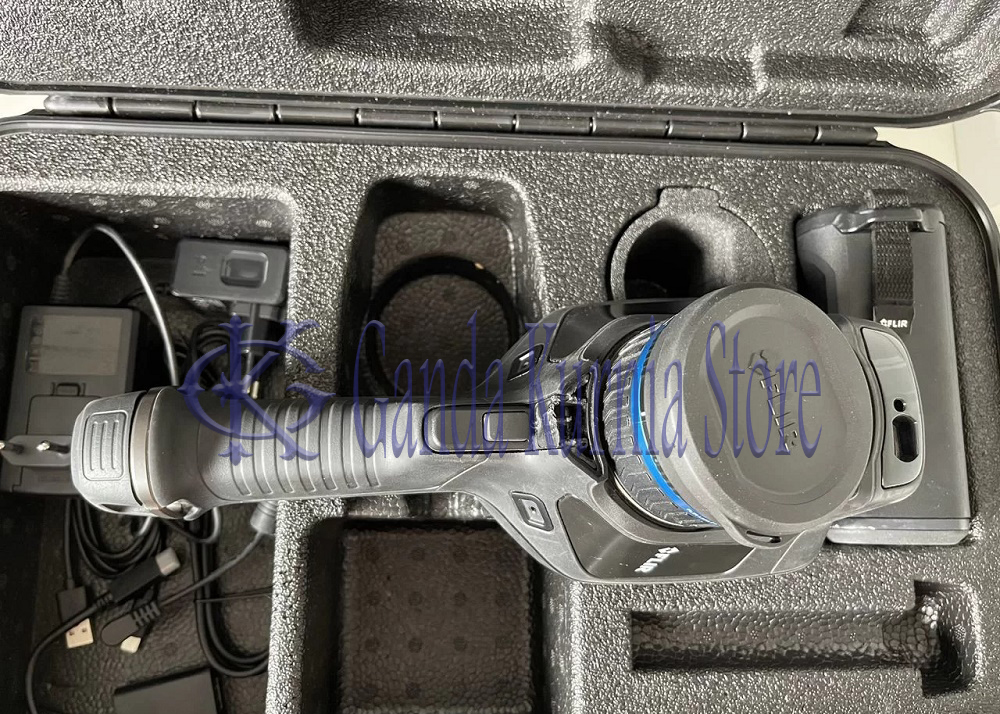

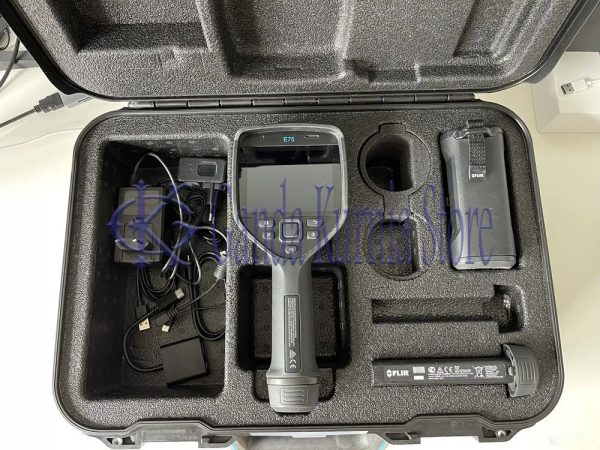

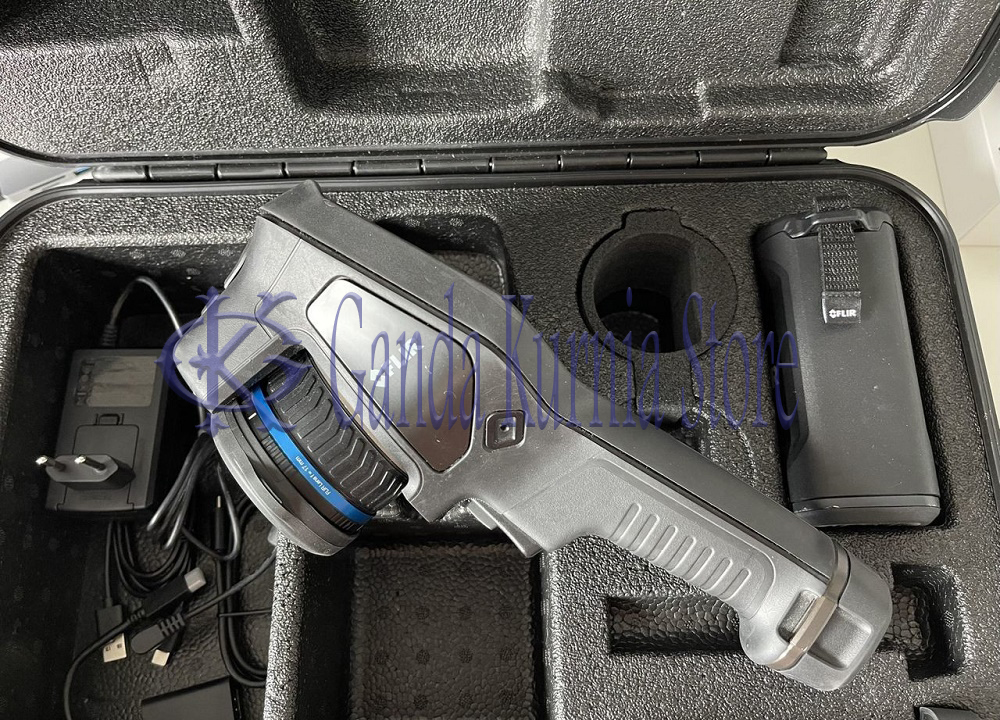

Flir E75 Infrared Thermal Imager
FLIR E75, E85, and E95 cameras offer superior sensitivity and a true 42° field of view in a user-friendly, handheld platform. These cameras can detect even subtle indications of building deficiencies and moisture intrusion, and offer on-screen area measurement so you can easily quantify and document air leaks, moisture, and other building problems.
Find Hidden Deficiencies
Uncover hard-to-find building envelope deficiencies and moisture penetration, and measure the area of the damage on-screen.
- Detects temperature differences down to 30 mK for early identification of air leaks and moisture
- MSX® image enhancements add perspective to scenes, with edge detail on windows and doors
- True 42° field of view (FOV) standard lens allows for surveys of wide areas with a single lens
- Measure area (m2 or ft2 ) of moisture intrusion on screen with data from laserassisted autofocus
Document Problems Quickly and Easily
Report problems in building structures for insurance claims, pre-insurance audits, and building inspections.
- Built-in voice annotation and customizable work folders makes finding images easier
- Connect over Wi-Fi to mobile devices or via METERLiNK® to FLIR moisture meters
- Streamlined reporting features through FLIR Tools+ simplifies insurance claims and inspection paperwork
Built for Your Rugged Work Environment
FLIR designed the E75, E85, and E95 to make your work faster, safer, and more efficient.
- Vibrant, 4” optically-bonded PCAP touchscreen with 160° viewing angle
- Comfort-designed handle and convenient buttons enable safe, one-handed operation
- Rugged, water-tight chassis and scratch-resistant Dragontrail™ cover glass
Key Features :
- Fast, precise laser-assisted autofocus
- Grip, trigger, and buttons designed for easy one-handed operation
- Sensitive enough to clearly identify hidden building deficiencies
- True 42° field of view (FOV)
- Wi-Fi, METERLiNK® connectivity
- Streamlined reporting features
Specifications Flir E75 :
| IR Resolution | 320 x 240 (76,800 pixels) |
| Object Temperature Range | -20°C to 120°C (-4°F to 248°F) 0°C to 650°C (32°F to 1200°F) Optional 300°C to 1000°C (572°F to 1830°F) |
| Time-lapse (Infrared) | No |
| Measurement Features by Camera | |
| Area Measurement Information | No |
| Spotmeter | 1 in live mode |
| Area | No |
| Common Features | |
| Detector Type and Pitch | Uncooled microbolometer, 17 µm |
| Thermal Sensitivity/NETD | < 0.03°C @ 30°C (86°F) |
| Spectral Range | 7.5 – 14.0 µm |
| Image Frequency | 30 Hz |
| Field of View (FOV) | 42° x 32° (10 mm lens), 24° x 18° (17 mm lens), 14° x 10° (29 mm lens) |
| F-Number | f/1.1, f/1.3 |
| Lens Identification | Automatic |
| Focus | Continuous, one-shot laser distance meter (LDM), one-shot contrast, manual |
| Digital Zoom | 1-4x continuous |
| Image Presentation and Modes | |
| Display | 4”, 640 x 480 optically-bonded PCAP touchscreen, with 400 cd/m2 surface brightness |
| Digital Camera | 5 MP, 53° x 41° FOV |
| Color Palettes | Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC |
| Image Modes | Infrared, visual, MSX®, Picture-in-Picture |
| Picture-in-Picture | Resizable and movable |
| MSX® | Embosses visual details on full resolution thermal image |
| UltraMax™ | Super-resolution process quadruples pixel count, activated in FLIR Tools+ |
| Measurement and Analysis | |
| Accuracy | ±2°C (±3.6°F) or ±2% of reading for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F) |
| Alarms | Moisture alarm, insulation alarm, measurement alarms |
| Color Alarm (Isotherm) | Above/below/interval/condensation/insulation |
| Laser Distance Measurement | Yes, on-screen |
| Measurement Presets | No measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2 |
| Compass, GPS | Yes; automatic GPS image tagging |
| METERLiNK® | Yes; several readings |
| Image Storage | |
| Storage Media | Removable SD card (8 GB) |
| Image File Format | Standard radiometric JPEG, measurement data included |
| Video Recording and Streaming | |
| Radiometric IR Video Recording | Real-time radiometric recording (.csq) |
| Non-Radiometric IR or Visual Video | H.264 to memory card |
| Radiometric IR Video Streaming | Yes, over UVC or Wi-Fi |
| Non-Radiometric IR Video Streaming | H.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi |
| Communication Interfaces | USB 2.0, Bluetooth, Wi-Fi |
| Video Out | DisplayPort over USB Type-C |
| Additional Data | |
| Battery Type | Li-ion battery, charged in camera or on separate charger |
| Battery Operating Time | Approx. 2.5 hours at 25°C (77°F) ambient temperature and typical use |
| Operating Temperature Range | –15°C to 50°C (5°F to 122°F) |
| Storage Temperature Range | –40°C to 70°C (-40°F to 158°F) |
| Shock/Vibration/ Encapsulation; Safety | 25 g / IEC 60068-2-27, 2 g / IEC 60068-2-6, IP 54 /IEC 60529; EN/UL/CSA/PSE 60950-1 |
| Weight/Dimensions w/o Lens | 1 kg (2.2 lbs), 27.8 x 11.6 x 11.3 cm (11.0 x 4.6 x 4.4 in) |
Additional information
| Lead Time | 3-5 Days |
|---|---|
| Packaging | Box |
Brand
Flir
