Description

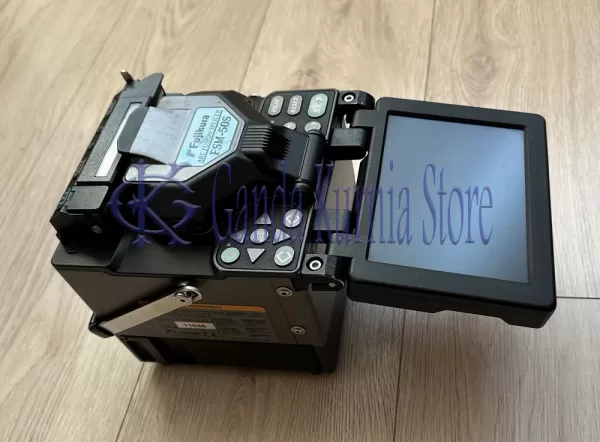

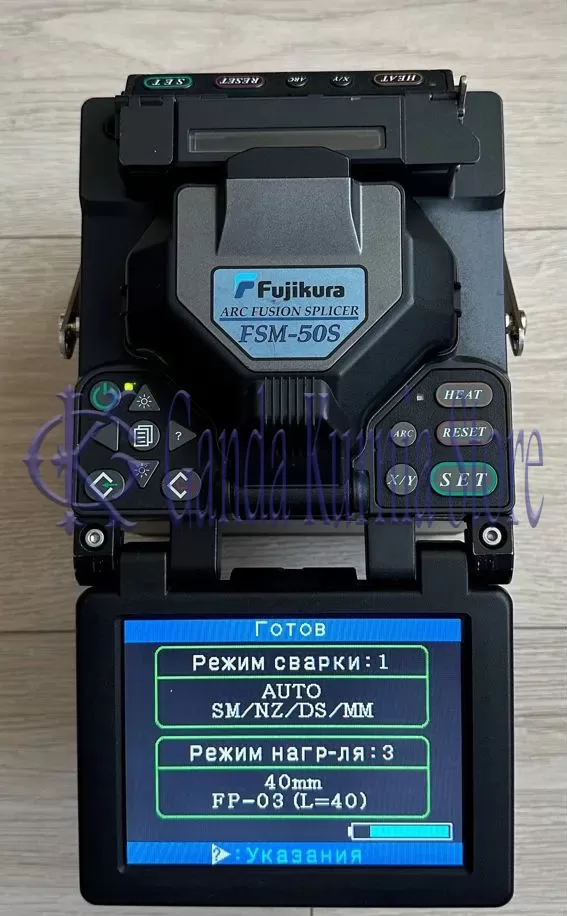

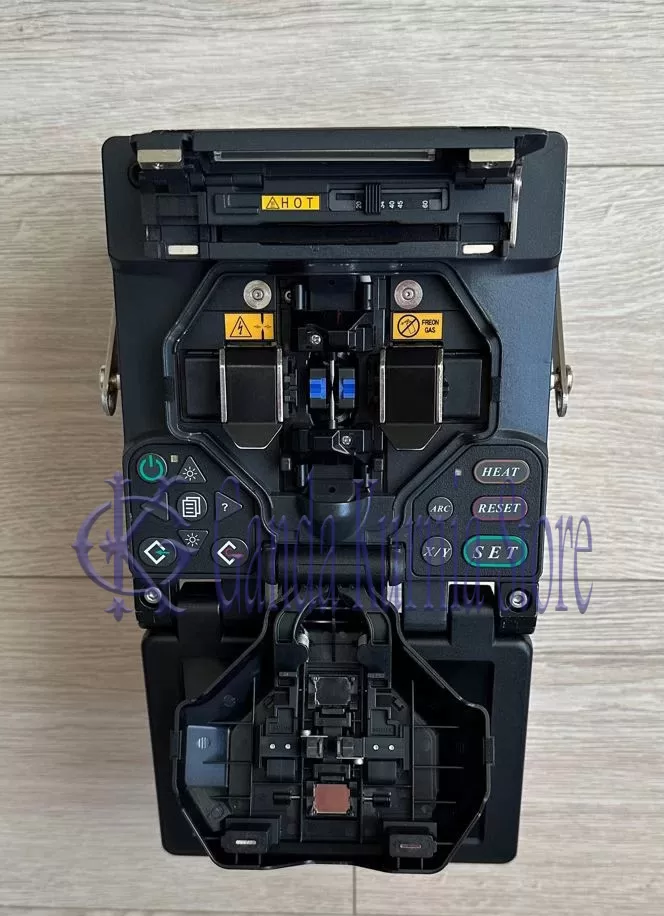

Fujikura FSM-50S Welding Fusion Splicer
This is a new standard of core to core aligning arc fusion splicer.
The Fujikura FSM-50S a number of improvements have been added to the performance-proven Profile Alignment System (PAS) platform, resulting in the smallest and lightest package of its kind. With improved splice & tube-heat time, the splicing operation is the world’s fastest truly optimized for field use. Other valuable features include an ergonomic design, reduced numbers of operating steps and a powerful battery extend the boundaries of traditional field fusion splicing performance. The movable monitor and dual-direction operating system essentially gives the operator a choice of two splicers. With these features, the FSM-50S is now more than a tool, it is a work of art.
Features Fujikura FSM-50S
- Fully automatic core alignment with 9 second splice time for SM fiber
- Reduced splice protector shrink time ﾖ now only 35 seconds
- Extremely compact and lightweight ﾖ just 2.8kg
- Automatic fibre type identification
- Multi-position monitor for front or top mounting
- High capacity battery option for 120 splice/shrink cycles
- Real time arc calibration
- Fibre clamps integrated into wind protector to reduce operation time
Dual-directional operating system
The reversible monitor accommodates the user’s ergonomic preference. With a control panel on each side, the ease of use is phenomenal.
Splice time of 9 sec.
Improved computer processing and newly introduced stepping motor help achieve 9 sec. splice time with SM fiber.
Tube-heat time of 35 sec.
Advanced heater design shortens tube-heat time to 35 sec. with FP-03 protection sleeve.
Large capacity battery option
Two types of slot-in batteries BTR-06S and BTR-06L are available.
Arc calibration-free system
Time-consuming arc calibration is no longer requried with real- time arc calibration.
Fujikura AFL FSM-50S Singlemode & Multimode Core Alignment Fusion Splicer
Fully automatic core alignment with 9 second splice time for SM fiber!
Includes 6 Month Fusion Splicer Care Kit (FS6MC)
- 4oz Flip Jar Of 99% Alcohol
- (50) Non-Lint Dry Wipes
- (6) Fiber Optic Wipes w/ 99% Alcohol
- 2oz Pump Fast Evaporating Mirror Spray
- (25) Camera Swabs
- (25) V-Groove Swabs
Includes USFiberOptic USF-21C Precision Fiber Cleaver, Hard Carrying Case & Accessories As Listed
Specifications Fujikura FSM-50S :
| Applicable fibers | SM（ITU-T G.652）, MM（ITU-T G.651）, DS（ITU -T G.653）, NZDS（ITU-T G.655） |
| Fiber Count | Single |
| Cladding diameter | 80 to 150μm |
| Coating diameter | 100 to 1000μm |
| Fiber cleaved length | 8 to 16mm with coating diameter of 250μm or less. 16mm with coating diameter of 250 to 1000μm. Optional set-plate for 8 to 16mm with coating diameter of 250 to 1000μm is available. |
| Actual average splice loss | 0.02dB with SM, 0.01dB with MM, 0.04dB with DS, 0.04dB with NZDS. Measured by cut-back method relevant to ITU-T and IEC standards. |
| Splice time | Typical 9sec. with standard SM fiber |
| Return loss | >>60dB |
| Splicing modes | 40 user programmable modes and up to 60 modes for reference（factory predetermined setting） |
| Splice loss estimate | Available |
| Attenuation splice function | Intentional high splice loss of 0.1dB to 15dB（0.1dB step）can be made for an in-line fixed attenuator. |
| Storage of splice result | The last 2000 results to be stored in the internal memory |
| Fiber display | X / Y, or both X and Y simultaneously |
| Magnification | 295x for single X or Y view, or 147x for X and Y view. |
| Viewing method | Two CMOS cameras and 5.6 inch color LCD monitor. |
| Operating condition | 0 to 5000m above sea level, 0 to 95% RH and -10 to 50 respectively. |
| Mechanical proof test | 2N（standard）/ 4.4N（option） |
| Tube heater | Built – in tube heater with 10 heating modes and up to 20 modes for reference |
| Tube heat time | Typical 35sec. with FP-03 protection sleeve |
| Applicable protection sleeve length | 60mm, 40mm and a series of micro sleeves |
| No.of splice/heating with battery | Typical 80 cycles with BTR-06（S）/ Typical 160 cycles with BTR-06（L） |
| Power supply | Auto voltage selection from 100 to 240Va.c. or 10 to 15Vd.c. with ADC-11. 13.2Vd.c. with BTR-06（S / L）. |
| Terminals | USB 1.1（USB-B type）for PC communication. Video terminal RCA video jack / NTSC |
| Wind protection | Max. wind velocity of 15m/s |
| Dimensions | 150W x 150D x 150H (mm) |
| Weight | 2.3kg（2.8kg including AC adapter ADC-11） |
Additional information
| Lead Time | 3-5 Days |
|---|---|
| Packaging | Box |
Brand
Fujikura
