OKM Rover C4 Metal Detectors

The ground scanner OKM Rover C4 is an easy-to-use multi-purpose treasure and void detector. The detector supports treasure hunters and archaeologists in finding lost treasures such as coins, rings and jewelry as well as underground structures like tunnels, caves, chambers and graves. The measured data can be viewed and analyzed via Visualizer 3D Software.

Benefits and Features of OKM Rover C4

• Operational touchscreen with alternative hardware buttons
• Graphical user interface in many different languages
• Improved multilevel LED lighting for detector usage in darkness
• Exchangeable probes: Standard Probe and Super Sensor
• Immediate basic target discrimination thanks to LED Orbit
• Supported operating modes: 3D Ground Scan, Pinpointer, Mineral Scan, Magnetometer
• Integrated battery
• Simplified wireless data transfer
• 4 separate memory areas to store measuring data
• Including detection software Visualizer 3D Studio Standard Edition

Simple Operation via Touchscreen

The Rover C4 is controlled via color touchscreen with multilingual user interface. This allows a fast and easy operation and configuration of the metal detector. The detector can also be operated by using the alternative buttons.

After selecting your preferred language, it will be indicated in the toolbar icon with the 2-letter-code according to ISO-639-1. The Rover C4 allows detector users to choose from the following languages:

Immediate Feedback via LED Orbit

The Super Sensor and Standard Probe are equipped with an innovative LED Orbit that indicates underground targets immediately during the scan. This basic target discrimination visualizes detected metals and voids in different colors.

Treasure Detector Operating Modes

One of the most versatile operating modes in our 3D metal detectors is 3D Ground Scan. This function is used to scan a rectangular area to obtain measuring data from underground structures and objects.

However, in order to perform extensive ground measurements and achieve the maximum detection performance, we recommend using the operating modes Magnetometer, 3D Ground Scan and Pinpointer in succession as follows. The Mineral Scan mode is a Rover C4 add-on for gold prospectors.

Use Magnetometer to clear the scan field of small metal items like nails, cans, screws and wires near the surface.

3D Ground Scan provides a graphical measurement of any area for further analysis in the detection software Visualizer 3D Studio.

With Pinpointer detectorists locate buried coins, rings, jewelry and similar treasure objects and artifacts more precisely.

Mineral Scan is used to locate natural gold deposits.

The fewer metal items near the surface, the better your 3D Ground Scan results. After clearing your scan field with Magnetometer, you can also find larger metal targets which are located deeper underground. Analyze your 3D Ground Scan images in Visualizer 3D Studio and locate the detected objects more precisely with the Pinpointer mode.

Ground Scanning with Metal Detector OKM Rover C4

Detectable items that can be found with the 3D ground scanner Rover C4 are:

• Lost treasures and hidden precious metals
  treasure chests, gold coins, jewelry, silverware, statues, general valuables, buttons, medals etc.
• Underground voids and cavities
  tunnels, graves, chambers, cellars, sepulchers, dugouts, shelters, bunkers etc.
• Natural gold minerals
  gold ore, gold deposits, gold veins etc.

Scan Analysis with Visualizer 3D Software

After transferring your 3D Ground Scans and Mineral Scans to the notebook with Visualizer 3D Software, the scan data are ready for further analyses in order to:

• Identify Potential Objects and Hidden TreasuresThe detected targets are represented by different colors. The color information will tell you if it is a ferrous metal (iron, steel), precious metal (gold, silver, bronze, copper) or a void structure (cave, tunnel, grave, chamber).
• Determine Position and DepthThe software shows the position of the detected anomalies and – according to the chosen soil – how deep the target is buried in the ground.
• Calculate Object DimensionsBesides depth information, Visualizer 3D Studio can also calculate the dimensions of hidden targets and buried items.

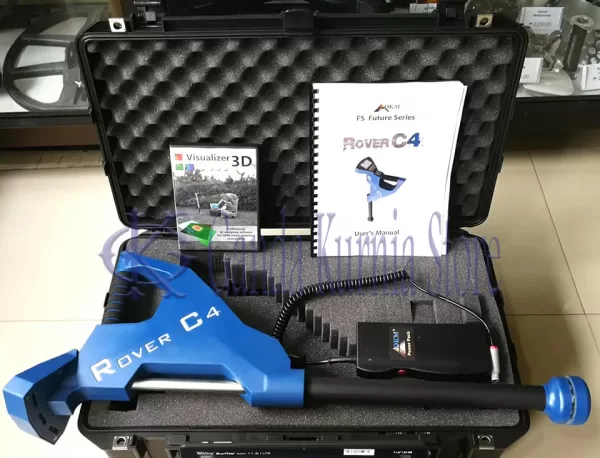

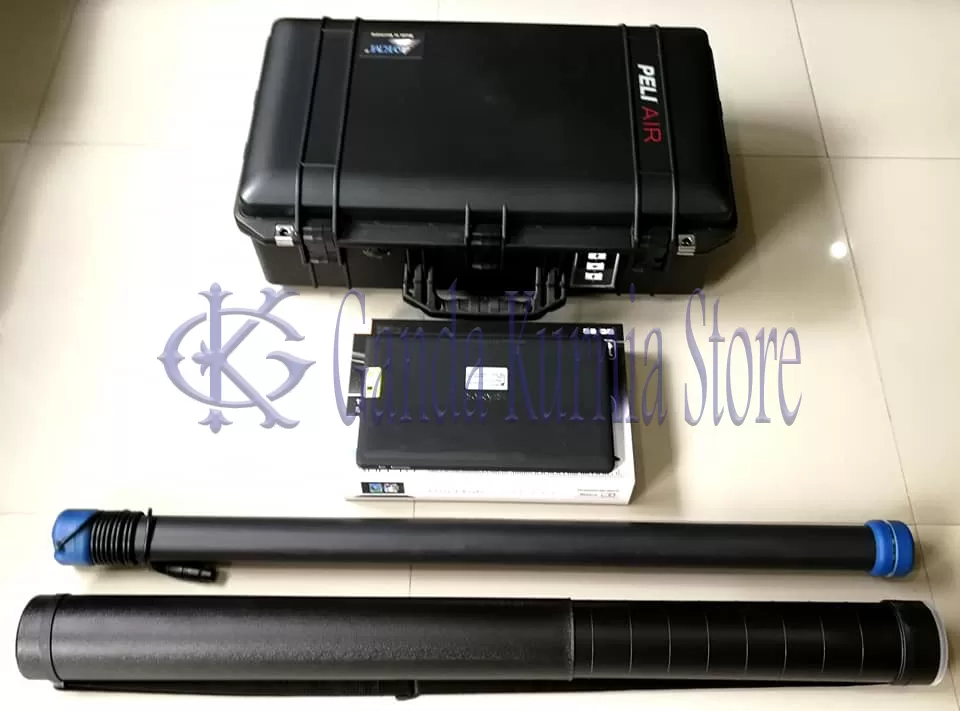

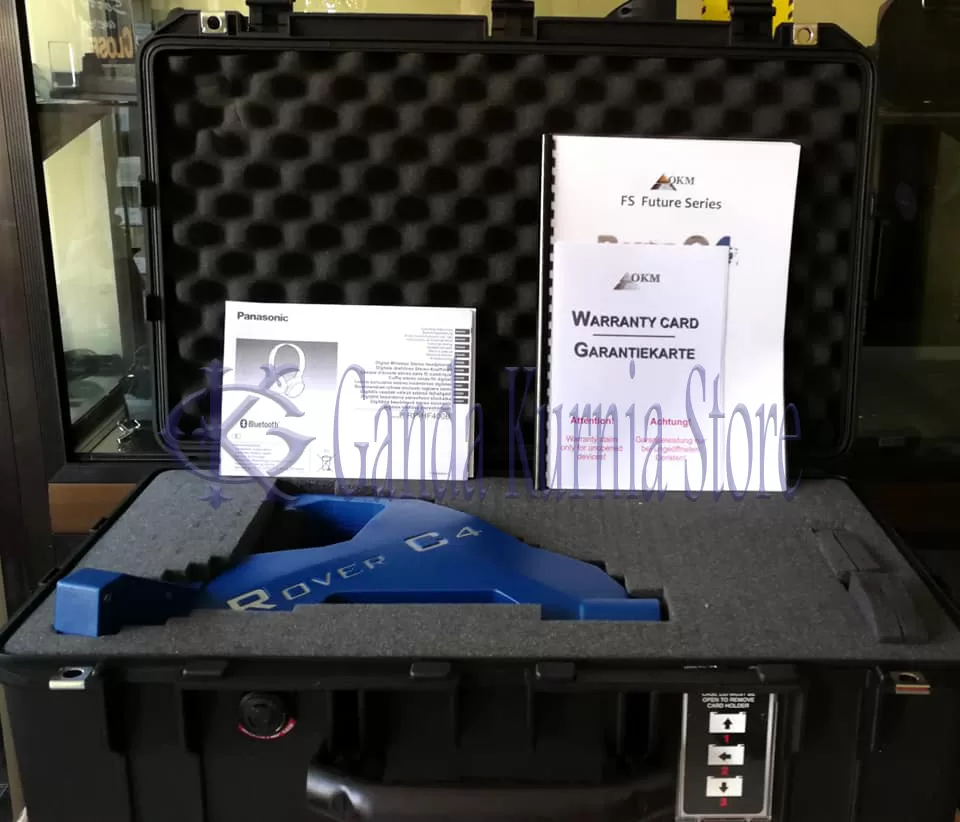

Delivery Scope OKM Rover C4

Specifications OKM Rover C4

Control unit

• Dimensions (H x W x D): 390 x 300 x 140 mm
• Weight: about 1.5 kg
• Input voltage (max.): 19 V DC, 3.16 A, 60 W
• Processor / Main CPU: Cortex M3, 32 MHz
• Processor / Slave CPU: Cortex M0, 24 MHz
• Display: 3.5” Resistive touch, 480 x 320 Pixel
• Display CPU: Cortex M3, 32 MHz, 128 KB RAM
• Data memory: 4 GB
• Sample rate: 1024 values / second
• Measurement resolution: 16 bit
• Operating temperature: –10°C – 60°C
• Storage temperature: –20°C – 70°C
• Audio: Internal speaker / Bluetooth
• Waterproof: No
• Air humidity: 5% – 75%

Standard Probe

• Weight: 0.4 kg
• Length: 445 mm
• Diameter tube / LED Orbit: 35 mm / 65 mm
• Technology: SCMI-15-D

Super Sensor

• Weight: 0.9 kg
• Length: 960 mm
• Diameter tube / LED Orbit: 50 mm / 65 mm
• Technology: SCMI-15-D

Data transmission

• Technology: Bluetooth 5.1
• Frequency: 2.402 – 2.480 GHz
• Maximum Transfer Rate: 1 Mbps
• Maximum Transmitting Power: +8 dBm
• Maximum Range: approx. 10 m

Computer minimum requirements

• Interface (data transmission): USB 2.0
• Free disk space: 250 MB
• Working memory (RAM): 2 GB
• Display: 1920 x 1080
• Processor: 1.2 GHz
• Graphics card: 1 GB RAM, OpenGL 3.3
• Operating system: Windows 10

The technical data are average values. Minor deviations are possible during operation.
