Description

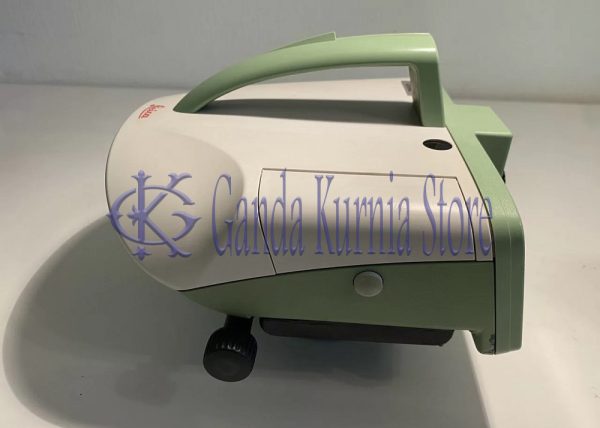

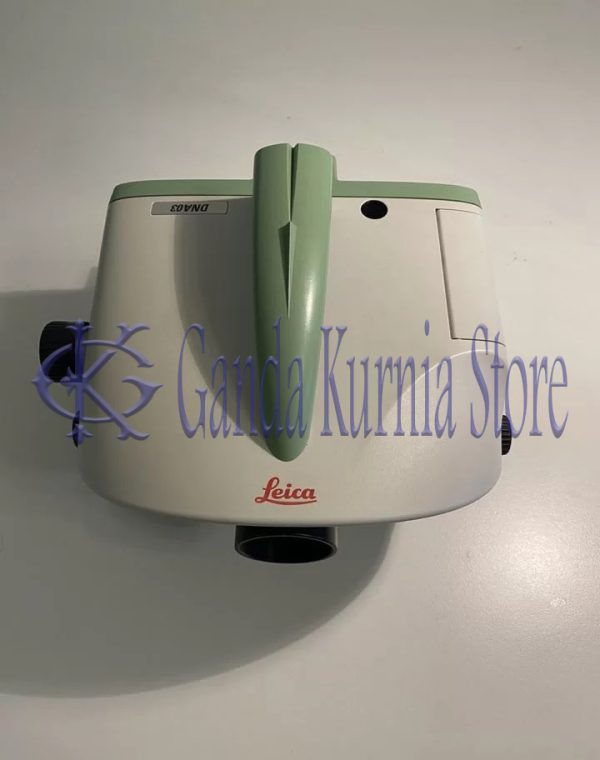

Leica DNA03 High Precision Digital Level

The Leica DNA03 is an extremely professional, high quality levelling instrument, capable of making height measurements with 0.3 mm standard deviation per km double levelling. Using the Leica DNA03 digital level, you can save up to 50% of time on the job when compared to standard levelling instruments. The Leica DNA03 has faster data capture and processing times, as well as the huge range of advanced features – such as “Meas & Rec”, which lets you easily measure and record height differences, and “Quick-Closure”, which allows you to compare the closing height quickly with a known point. These features all help to speed up the levelling process, to give you accurate and precise levelling results in hardly any time at all! With the Leica DNA03, you can measure without mistakes. This digital level accurately measures the height and the distance to the staff, and calculates the height of the point, with just the touch of a button. The Leica DNA03 automatically saves these results to its internal memory and a memory card, which can then be transferred to a PC for further analysis. Leica DNA03 digital levels are capable of make single measurements and determining average or median out of multiple measurements with a definable standard deviation, and repeated single measurements. The Leica DNA03 can provide a solution for all jobs, from height determination for topographic and construction surveys, to first order levelling and monitoring. Using the innovative ‘Meas & Rec’ function, the Leica DNA03 digital level is capable of performing all kinds of area levelling tasks, land surveys, line levelling and stake outs, as well as working out height differences in numerous points.

Features:

• 24x magnification
• Up to 360-foot working range
• 1/64 inch per km double-run height accuracy
• 3/16 inch at 33 ft distance accuracy
• 6,000 points internal memory
• Onboard programs
• Leica Geo Office Tools
• 360-degree horizontal circle
• Bi-directional horizontal drive
• CF-card slot for backup data storage
• 12-hour battery life

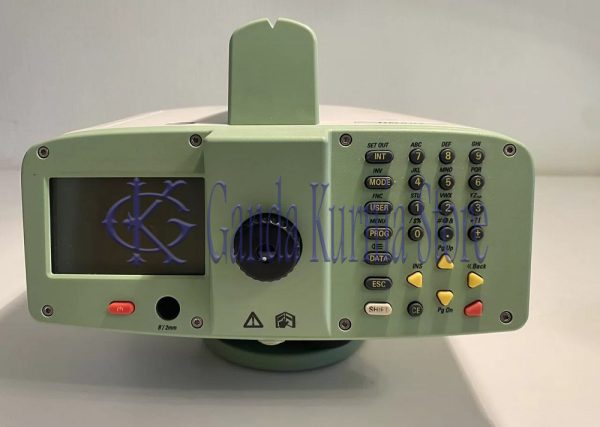

• Large backlit LCD
• Alphanumeric keyboard
• IP53 dust and water resistant

Includes:

•  Leica DNA03 Digital Auto Level, 24x
•  Leica Geo Office Tools

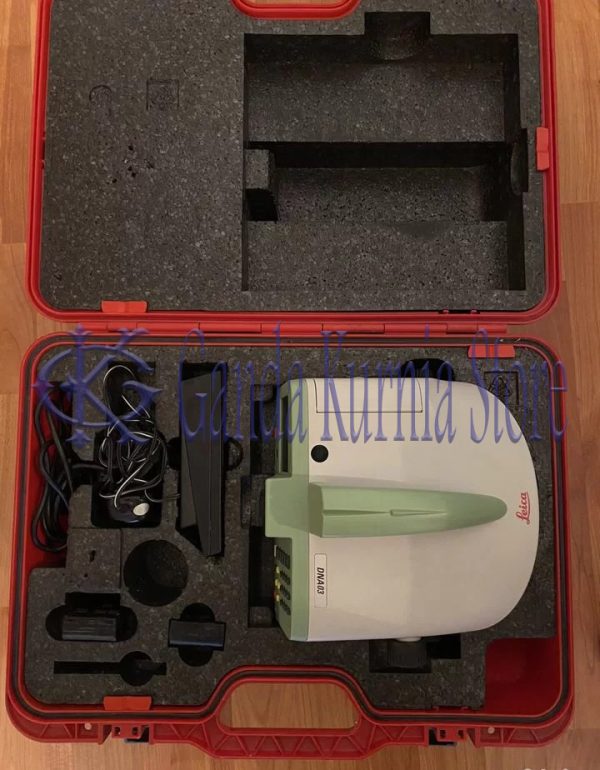

•  Hard carrying case
•  Serial data transfer cable (USB A to Lemo0 5-pin)
•  Car adapter cable
•  GEB111 rechargeable NiMH battery
•  GKL112 battery charger
•  User manual
•  1-year manufacturer’s warranty

Specifications Leica DNA03 :

• Height Measurement:  Working Range: 5.9 ft. to 360 ft. (1.8 m to 110 m); Measuring Time:  3 seconds; Least Count: 0.01 mm, 0.0001 ft, 0.0005 in.
• Distance Measurement: Time:  3 seconds; Range: 5.9 ft. to 360 ft. (1.8 m to 110 m).
• Display and Keypad: Type:  LCD (8 lines at 24 characters); Keys:  Alphanumeric; Backlight:  yes
• Telescope: Magnification:  24x; Objective Aperture:  1.41 in.(36 mm); Field of View:  3.5 m at 100 m; Minimum Focus: 1.9 ft. (0.6 m); Image:  Erect; Stadia Ratio:  1:100; Stadia Constant:   0
  Compensator: Type:  Magnetic damping and pendulum mechanism; Range:  ±10′
• Temperature: Operating: -4°F to +122°F (-20°C to +50°C); Storage: -40°F to +158°F (-40°C to +70°C)
  Battery/Power: Power Source:  Rechargeable NiMH GEB111; Battery Life: 12 hours; Battery Life Alert:  yes.
  Features: Circular Level Sensitivity:  8’/2 mm; Adjustment Knobs : 2; Interface:  RS232 serial; Memory: 6,000 measurements
• Accuracy: Distance:  5 mm at 10 m; Height: 0.3 mm per km double run
• General: Protection Class: IP53 (protected against dust and spraying water); Weight: 6.1 lbs (2.8 kg); Warranty:   1-year; Tripod Thread:  5/8-11; Self-Leveling:  yes; Units of Measure:  Degrees, mm, m, in, ft; Dimensions: 8.2 x 9.4 x 6.6 in (21.0 x 24.0 x 16.8 cm).
