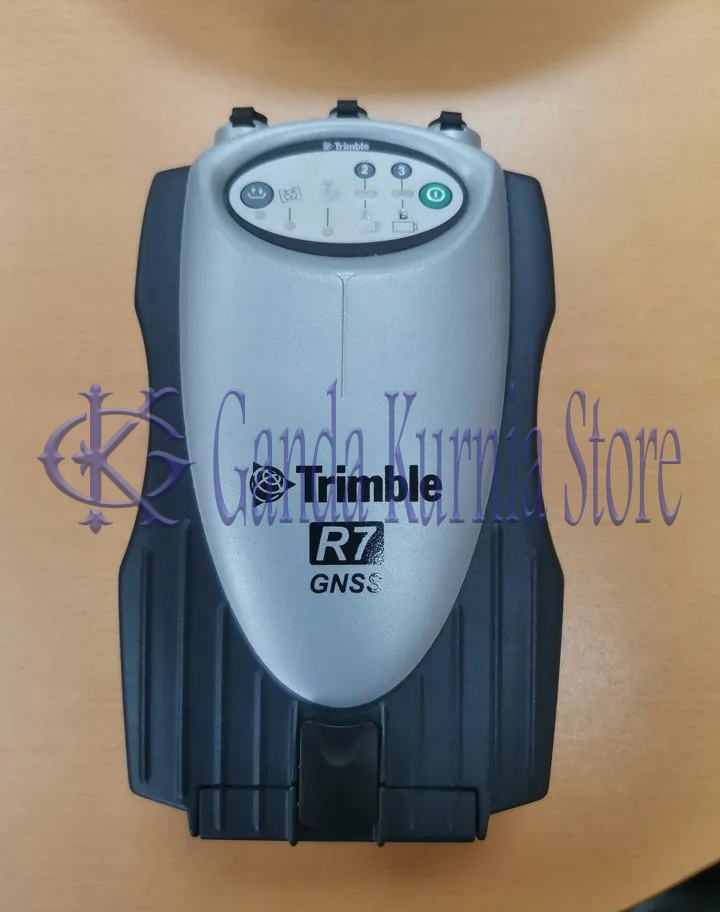

Trimble R7 GPS GLONASS RTK Radio Modem Receiver
Trimble R7 Base Or Rover Receiver
The Trimble R7 GNSS System is a multi-channel, multifrequency GNSS (Global Navigation Satellite System) receiver and UHF radio combined in one exceptionally rugged unit. The Trimble R7 GNSS combines advanced receiver technology with proven system design to provide maximum flexibility, accuracy, and productivity.
TRIMBLE R-TRACK TECHNOLOGY FOR COMPREHENSIVE GNSS SUPPORT
Powered by the enhanced RTK engine, Trimble R-Track™ technology in the Trimble R7 GNSS supports the GPS Modernization signals L2C and L5, as well as GLONASS. The R7 GNSS is also capable of using the three levels of OmniSTAR1 positioning – OmniSTAR HP, OmniSTAR XP and OmniSTAR VBS.
Its ability to track more satellites—both GPS and GLONASS—means Trimble R-Track can help to improve field productivity, and the resulting postprocessed or RTK solution is enhanced. The new and coming L2C and L5 will also improve the solution, plus these signals are more easily acquired and tracked in challenging GPS conditions.
Investing in the power of Trimble R-Track prepares you for future GNSS capabilities. Trimble, already proven in GPS, will continue to lead in additional GNSS support.
PROVEN SYSTEM DESIGN
The overall design of the Trimble R7 GNSS system has been tried, tested, and proven in the field.
Flexible Separate Antenna Options

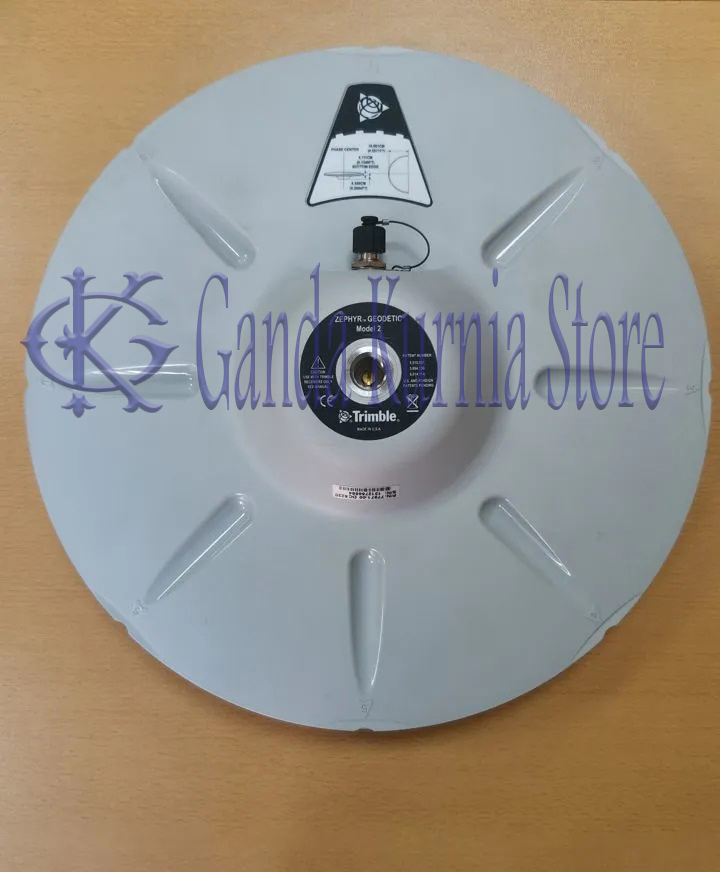

Use the Trimble® Zephyr Geodetic™ 2 ground plane antenna3 to minimize signal multipath at the Trimble R7 GNSS base, providing the “cleanest” data. As a rover, the modular Trimble R7 GNSS with Trimble Zephyr™ 2 antenna is extremely flexible: Carry the receiver on the pole, wear it in the purpose-built Trimble backpack, or drive with the Trimble R7 GNSS inside your vehicle. The Trimble R7 GNSS supports the way you want to work.
New Bluetooth Wireless Communication
For extra convenience and fewer cable hassles, the Trimble R7 GNSS includes Bluetooth for wireless connection to a Trimble controller, such as the Trimble® TSC3 Controller.
Exceptionally Rugged and Lightweight
The GNSS receiver and internal UHF radio are fully protected from water, dust, and shock inside the unit’s full metal jacket. This field sturdiness makes the Trimble R7 GNSS ideal for tough environments.
THE ORIGINAL INTEGRATED SURVEYING SOLUTION AND BEYOND
The Trimble R7 GNSS system is designed to support Trimble’s original Integrated Surveying™ solution. Combine your GPS and optical data in one job file in powerful Trimble field software such as Trimble Access™, then transfer the job file seamlessly to your Trimble office software, such as Trimble Business Center, for processing.
Whenever you’re facing a new surveying challenge, your partnership with Trimble places the right tools and techniques, including GNSS technology, at your fingertips. Each Trimble system seamlessly integrates via shared workflows and technologies, making your everyday job site a place where the whole is greater than the sum of its parts: Welcome to the Connected Site.
Features Trimble R7 :
- Trimble R-Track technology for comprehensive GNSS support
- A modular system with external antenna for maximum flexibility
- Advanced receiver technology and proven system design combined
- An important component of the Trimble Connected Site
Include :

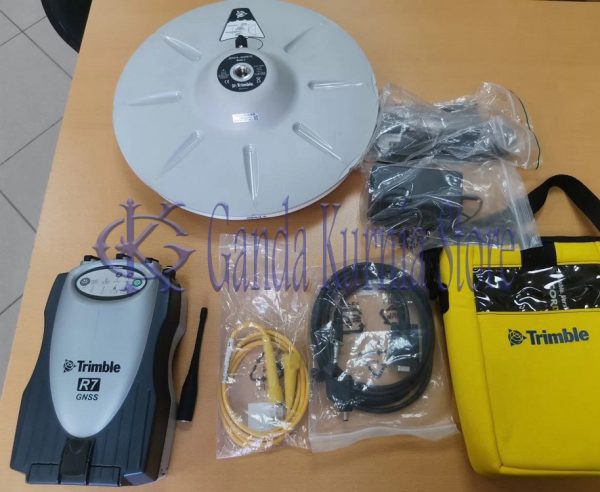

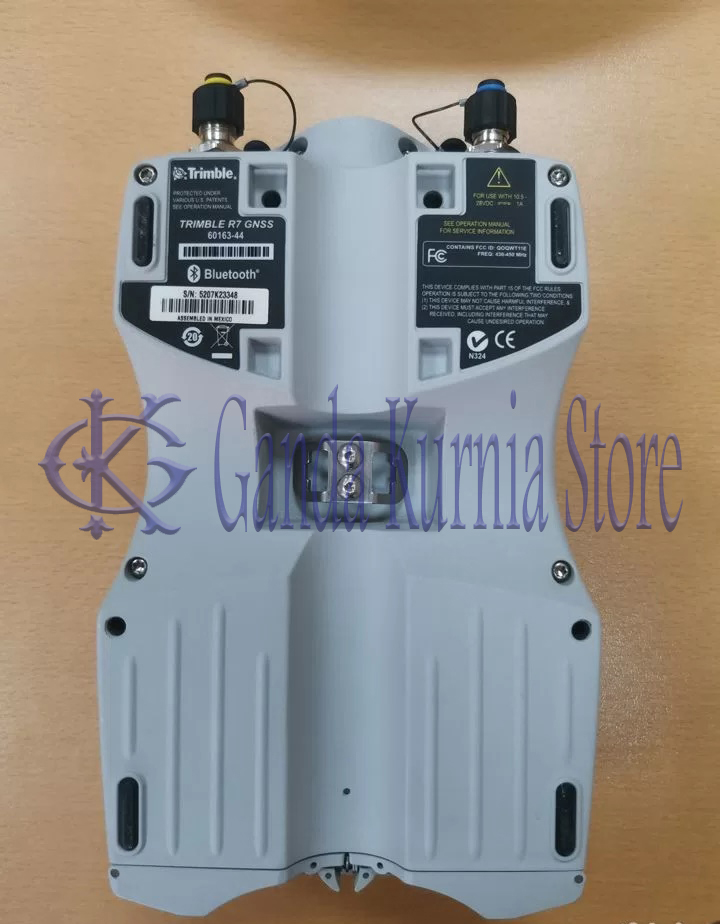

- Trimble R7 GPS GLONASS 450 – 470 MHz Modem Receiver w/ Options… [ID- X2536]
– CMR Inputs
– CMR Outputs
– RTCM Inputs
– RTCM Outputs
– Data Collector
– Binary Outputs
– Data Logging
– Event Marker
– Bluetooth
– L2CS
– L5
– GLONASS
– Max Data Rate 20 Hz
– Serviced By A Trimble Authorized Service Center - Trimble 32345 RS232 Power Cable
- 1GB Flash Card
- Li-ION Battery Charger w/ AC Adapter
- Antenna
- User Manual On CD-ROM
- Carrying Case (G)
Specifications Trimble R7 :
| Performance Specifications | |
| Measurements | • Trimble R-Track technology • Advanced Trimble MaxwellTM Custom Survey GNSS Chip • High precision multiple correlator for GNSS pseudorange measurements • Unfiltered, unsmoothed pseudorange measurements data for low noise, low multipath error, low time domain correlation and high dynamic response • Very low noise GNSS carrier phase measurements with <1 mm precision in a 1 Hz bandwidth • Signal-to-Noise ratios reported in dB-Hz • Proven Trimble low elevation tracking technology • 72 Channels: – GPS L1 C/A Code, L2C, L1/L2/L5 Full Cycle Carrier1 – GLONASS L1 C/A Code, L1 P Code, L2 P Code, L1/L2 Full Cycle Carrier – 4 SBAS WAAS/EGNOS Channels |
| Positioning Performance | |
| Code differential GNSS positioning | |
| Horizontal | 0.25 m + 1 ppm RMS |
| Vertical | 0.50 m + 1 ppm RMS |
| SBAS differential positioning accuracy | typically <5 m 3DRMS |
| Static GNSS Surveying | |
| High-precision static | |
| Horizontal | 3 mm + 0.1 ppm RMS |
| Vertical | 3.5 mm + 0.4 ppm RMS |
| Static and FastStatic | |
| Horizontal | 3 mm + 0.5 ppm RMS |
| Vertical | 5 mm + 0.5 ppm RMS |
| Real-Time Kinematic Surveying | |
| Single Baseline <30 km | |
| Horizontal | 8 mm + 0.5 ppm RMS |
| Vertical | 15 mm + 1 ppm RMS |
| Network RTK | |
| Horizontal | 8 mm + 0.5 ppm RMS |
| Vertical. | 15 mm + 0.5 ppm RMS |
| Initialization time | typically <8 seconds |
| Initialization reliability | typically >99 9% |
| hardware | |
| Physical | |
| Casing | Tough, lightweight, fully sealed magnesium alloy |
| Dimensions (W×HxL) | 13.5 cm × 8.5 cm x 24 cm (5.3 in x 3.4 in x 9.5 in) |
| Weight | 1.5 kg (3 lb) with internal batteries, internal radio, internal battery charger, standard UHF antenna. Less than 4 kg (8.8 lb) entire RTK rover including batteries for 7 hours, range pole, controller and bracket |
| Temperature | |
| Operating: | –40 °C to +65 °C (–40 °F to +149 °F) |
| Storage: | –40 °C to +80 °C (–40 °F to +176 °F) |
| Humidity | 100%, condensing |
| Water/dustproof: | IP67 dustproof, protected from temporary immersion to depth of 1 m (3.28 ft) |
| Shock and vibration | Tested and meets the following environmental standards: Shock: Non-operating: Designed to survive a 1 m (3.3 ft) drop onto concrete. Operating: to 40 G, 10 msec, sawtooth Vibration: MIL-STD-810F, FIG.514.5C-1 |
| Electrical | • Power input 10.5 V DC to 28 V DC with over-voltage protection • Two rechargeable, removable 7.4 V, 2.4 Ah Lithium-Ion batteries in internal battery compartments • Power consumption: – 4.0 W for receiver only (tracking and logging) – 4.4 W including internal radio (not receiving CMR) – 5.9 W (tracking SV’s, logging at 1 Hz, Bluetooth®7 Active, external antenna and RTK in Fixed mode) • Operating times on internal battery: – >10 hours postprocessed – 6–8 hours RTK (with two 2.4 Ah batteries) • Battery charger internal with external AC power adapter; no requirement for external charger • Power output: – 6.5 V to 20 V (Port 1) maximum 50 mA – 10.5 V to 28 V (Port 3) maximum 0.5 A • FCC Part 15C (2.4 GHz) certification, compliant with FCC Part 15B (Class B device); IC RSS-210 and RSS-310 certifications, compliant with ICES-003 (Class B device); CE-mark and C-tick mark conformity |
| Communications and Data Storage | • 2 external power ports, 2 internal battery ports, 3 serial ports • Integrated USB for data download speeds in excess of 1 megabit per second • Fully integrated, fully sealed internal UHF radio modem option • External cell phone support for GSM/GPRS/CDPD modems for RTK and VRS operations • Fully integrated, fully sealed 2.4 GHz communications port (Bluetooth®) 7 • 16 NMEA outputs. GSOF and RT17 output • Dual event marker inputs, 1 Pulse Per Second Output • 1 Hz, 2 Hz, 5 Hz, 10 Hz, and 20 Hz positioning and data logging • CMR+, CMRx, RTCM 2.1, RTCM 2.3, RTCM 3.0, RTCM 3.1 Input and Output • Data Storage on 256 MB CompactFlash memory at 15 second intervals: – 4600 hours of raw observables, GPS + GLONASS with 13 SV average – 8900 hours of raw observables, GPS-Only with 8 SV average |
